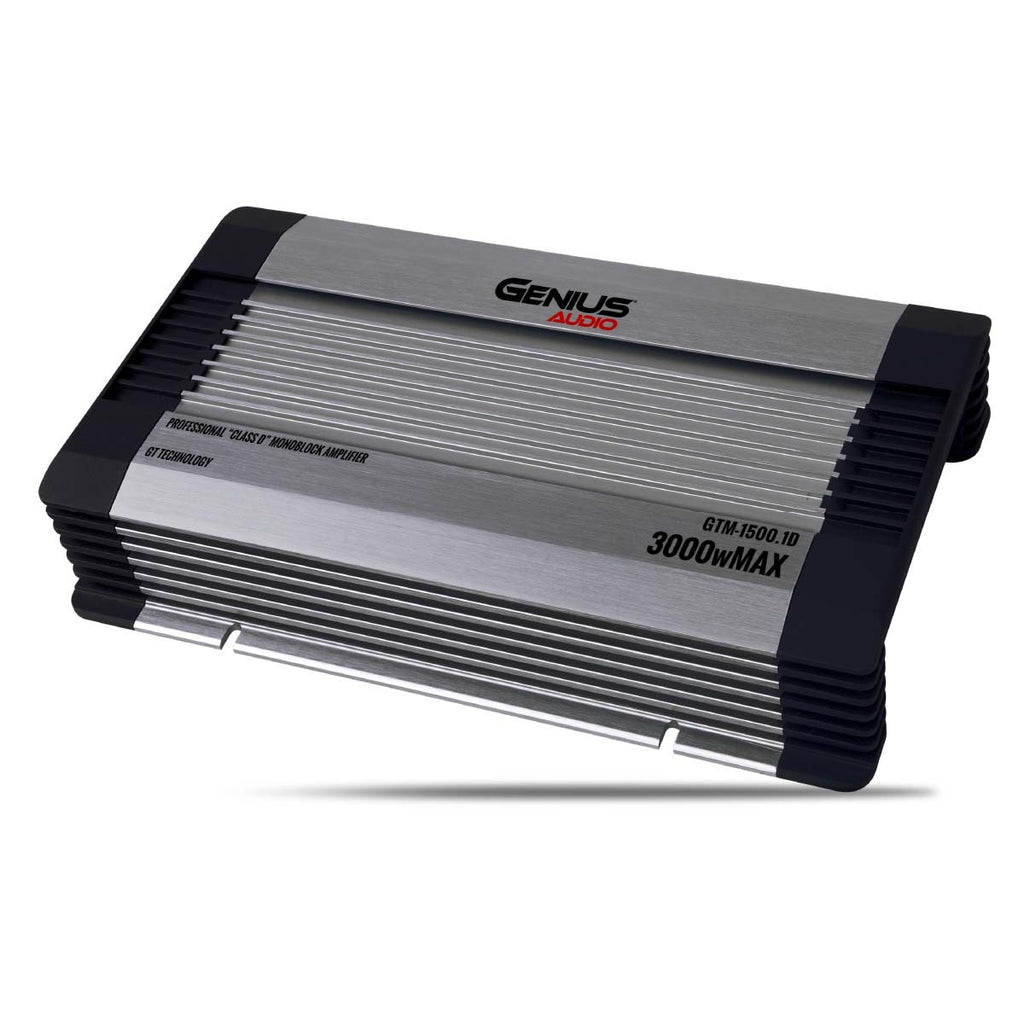

GTM SERIES SINGLE CHANNEL COMPACT DIGITAL AMPLIFIER 3000WMAX/1500WRMS X 1CH STABLE 1 OHM MONO

The GTM-1500.1D is the best for those looking for both power and quality: It has a youthful look with a dominant power, contains a premium range of internal electronic components, which make it extremely powerful and reliable against the demands both fans and competitors wish to fulfill. This amplifier is one of our best selling models; aside from its incredible results, it also has linkable function with 2 amplifiers of the same model. This function allows to double the performance, efficiency and power of the amplifiers in master/slave mode. The Master amplifier will be in change of controlling the functions of both amplifiers for both power gain and crossover functions, and providing the stability and high power that every competitor is looking for. It has a remote control accessory included, which will allow to remotely manage the power gain of the amplifier.
--
CHANNELS 1 Channel PCB Layers Double layers TOPOLOGY SMD Chipset / SUB CH 1? Power Output (CEA) 1x1500w 2? Power Output (CEA) 1x800w 4? Power Output (CEA) 1x450w TOTAL HARMONIC DISTORTION 1% SUB CH Power Max @ 12.6 VDC - 4? Mono 1x400w Power Max @ 13.8 VDC - 4? Mono 1x430w Power Max @ 14.4 VDC - 4? Mono 1x450w Power Max @ 12.6 VDC - 2? Mono 1x750w Power Max @ 13.8 VDC - 2? Mono 1x800w Power Max @ 14.4 VDC - 2? Mono 1x850w Power Max @ 12.6 VDC - 1? Mono 1x1350w Power Max @ 13.8 VDC - 1? Mono 1x1450w Power Max @ 14.4 VDC - 1? Mono 1x1560w INPUT SENSIVITY: 0.2-6V SIGNAL/NOISE RATIO 97dB GAIN RANGE 5-0.2 X-OVER RANGE 40-180Hz X-OVER RANGE / Subsonic FREQUENCY 10-50Hz OPERATION EFFICIENCY 80% Full Power THERMAL TIME 45 DAMPING FACTOR >200 FREQUENCY RESPONSE 10-190Hz BASS BOOST 0-12dB PROTECTION SYSTEM: Over voltage / Thermal / Short circuit protection MINIMUM SUPPLY VOLTAGE: 9V MAXIMUM SUPPLY VOLTAGE: 16V IDLE CONSUMPTION @ 12,6 VDC: 0.7A MUSIC MAX. CONSUMPTION @12,6VDC: 90A REMOTE CONTROL: YES

[Download Product Manual]
